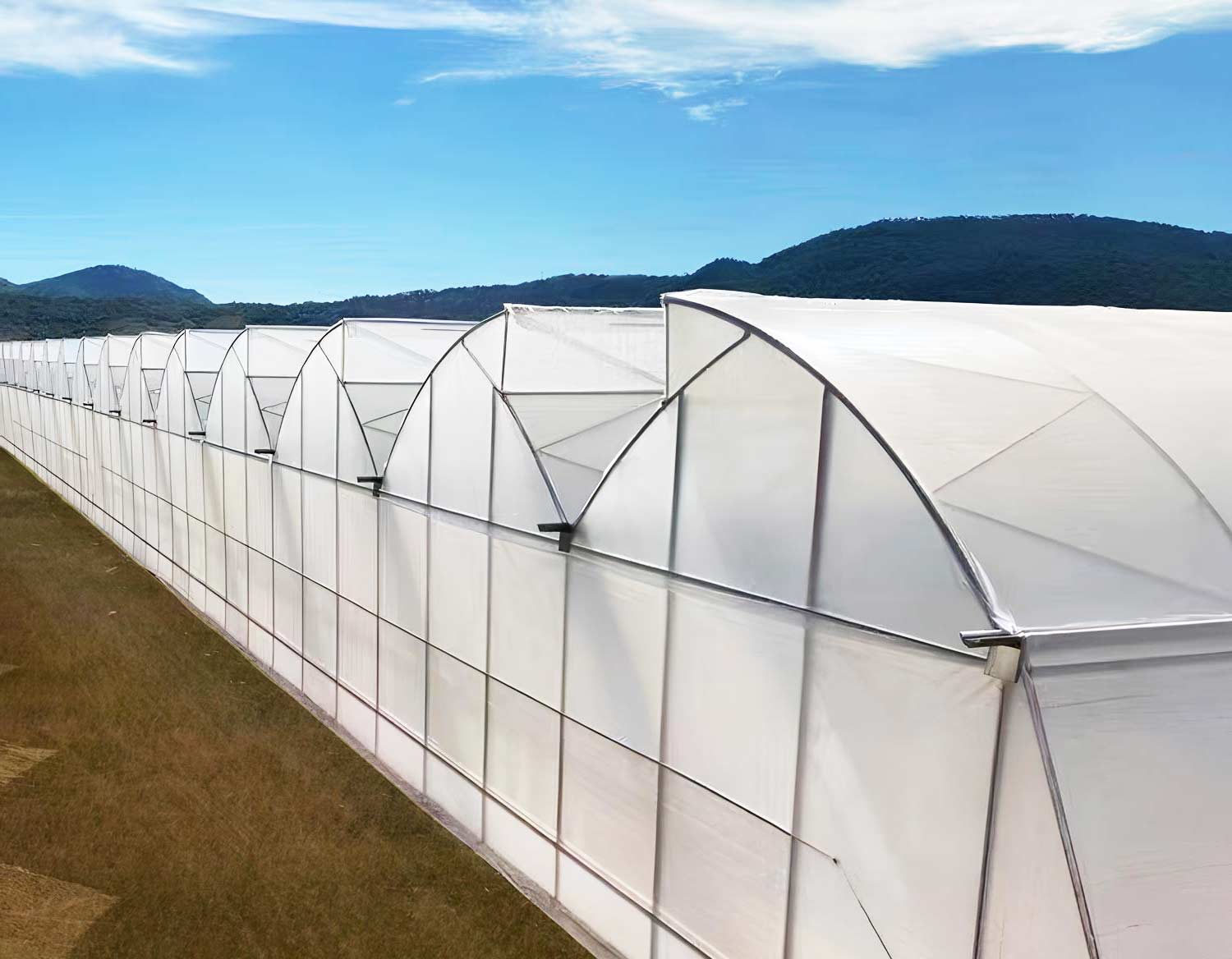

Our sawtooth greenhouse is a specific type of multi-span greenhouse characterized by its distinctive sawtooth roof design. Like other multi-span greenhouses, it consists of multiple connected bays, offering large-scale growing areas. What sets it apart is its enhanced natural ventilation, thanks to the vertical windows on the sawtooth-shaped roof, which promote the smooth escape of hot air without needing electric fans. This design, combined with the robust galvanized steel structure, makes it highly effective for various climates and applications, such as fruit and vegetable production, insulation, and rain protection.
| Specification | Details |
| Design | Dual-arc or Single arc sawtooth roof |
| Span (m) | 6 / 8 / 10 / 12 / 16 (customized) |
| Ridge Height (m) | 2 – 5 (customized) |
| Max Wind Load | 150 KM/H |
| Max Snow Load | 50 cm |
| Weight Load | 0.2 kN/m² |
| Rain Drainage | 140 m²/hour |
| Steel Coating | 275g/m² |
| Film Thickness | 80 / 100 / 120 / 150 / 200 microns |
| Application | Ideal for crop production in tropical and subtropical climates |

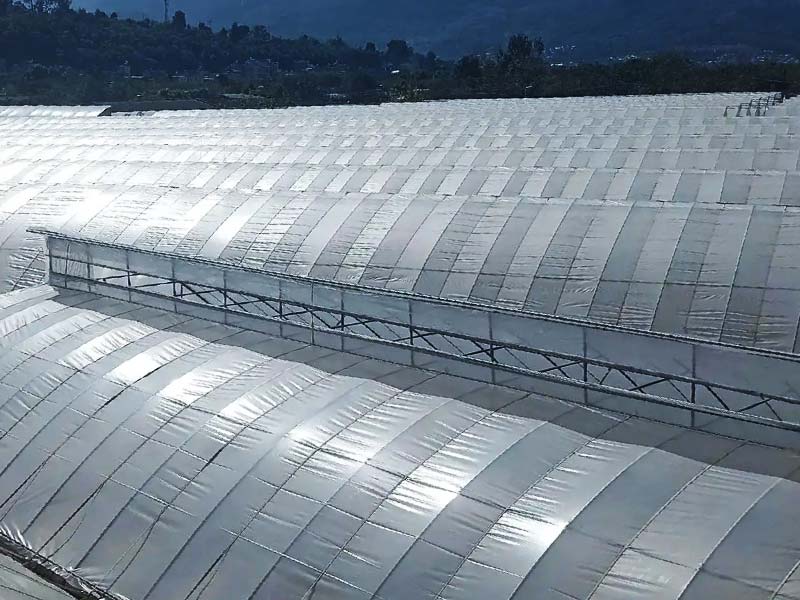

Includes vertical windows at the top, enabling hot air to escape and promoting natural convection. This ensures consistent ventilation, even during heavy snow and rain.
We offer both dual-arc and single-arc designs. Dual-arc can reduce the overall height to minimize wind load and ensure efficient water drainage.

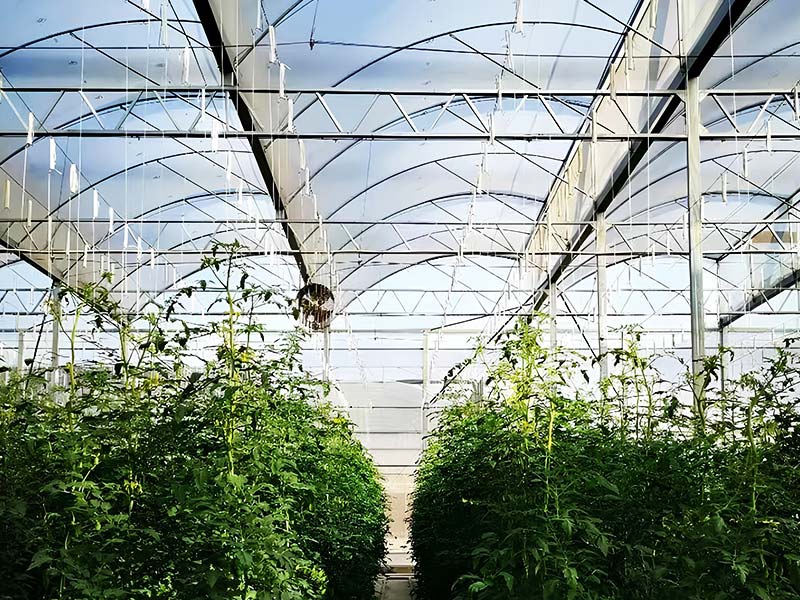

Each span of the greenhouse is 6-16 meters wide, ideal for commercial farming. The multi-span design enables flexible layouts and optimal space use.
The high-strength galvanized steel greenhouse frame offers durability and stability in extreme weather and ensures a long lifespan with minimal maintenance.
Our sawtooth greenhouse systems can be fully customized to meet your specific requirements. Whether you need ventilation, shading, irrigation, or automation systems, we offer a range of configurations to ensure optimal greenhouse management.
